The Aircraft


The first aircraft in our collection is a DC-7B (N836D) serial number 45345/928, originally delivered to Eastern Airlines in January 1958.  Operated by EAL and several flying clubs for less than 10 years before being parked at the St. Paul, MN airport.

The airplane was made ready to ferry during May-August of 2004. With an overnight stop in Atlanta, it arrived in Miami to begin the restoration process. The original interior and hat racks were removed, and placed into long-term storage. They will be available for re-installation come the day the airplane is put on permanent static display. Over 65% of the original aluminum skin, outer wing panels, engines, have been repaired or replaced. A full paint scheme and new interior was completed for the first official Open House in December, of 2008. The airplane has now (March 22, 2010) received the necessary FAA exemption to begin carrying passengers for compensation. This is a wonderful program initiated by the FAA to allow historically significant aircraft to raise funds for its own preservation.


Historical and Statistical Information:


 First Flight:     May 18, 1953
 Number Built:        105 DC-7B's were built for commercial use
 Length: 108 feet - 11 inches
 Wing Span: 117 feet - 6 inches
 Height: 28 feet - 7 inches
 Max Take0off Weight: 114,600 - 122,000 lbs.
 Max Landing Weight: 95,000 - 97,000 lbs.
 Dry Weight: 58,150 lbs.
 Max Cruising Speed: 405 mph - 352 kts
 Normal Cruising Speed:     359 mph - 312 kts
 Approach Speed: 144 mph - 125 kts
 Landing Speed: 132 mph - 115 kts
 Stall Speed: 97 mph - 84 kts
 Service Ceiling: 28,400 feet
 Fuel Capacity: 4,512 US Gallons
 Range:

5,164 miles w/ maximum fuel payload

3,565 miles w/maximum weight payload

 Fuel Type: 115 / 145 Octane
 Fuel Consumption:

313 gph - 4 engine flight plan burn w/max fuel

456 gph - 4 engine flight plan burn w/ max load

 Crew: 3 Pilots / 2 Flight Attendants
 Seating: 64 to 95 Passengers (HFF will operate with 58 seats)




Engine Specs:  Wright R-3350 - 30W


 Type: 18 Cylinder Air Cooled Radial
 Diameter: 61.2 Inches
 Length: 89.53 Inches
 Bore: 6.125 Inches
 Stroke: 6.312 Inches
 Displacement: 3,350 Cubic Inches
 Compression Ratio: 6.7 to 1
 Dry Weight: 3,514 lbs.
 Ignition: Scintilla DLN-9
 Fuel Grade: 115 / 145 Octane
 Carburation: Stromberg PR-58T1
 Performance:

Take off power - 3,250 hp @ 2,900 rpm

Normal Power - 2,600 hp @ 6,500 rpm

 Remarks:

The R3350-30W is a compound version of the R3350-26W using 3 small turbines driven by exhaust gas and connected by fluid couplings to the crankshaft.  This increases the take-off power to 3,250 HP.



Oshkosh AirVenture 2010




St. Paul, MN



Work BeginsOpa-locka, FL

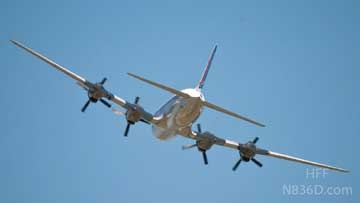

July 4th 2010 Take-off!
